2.4.22 Comment on WaveformView

You can add comments anywhere  in WaveformView.
Let's see example.
.

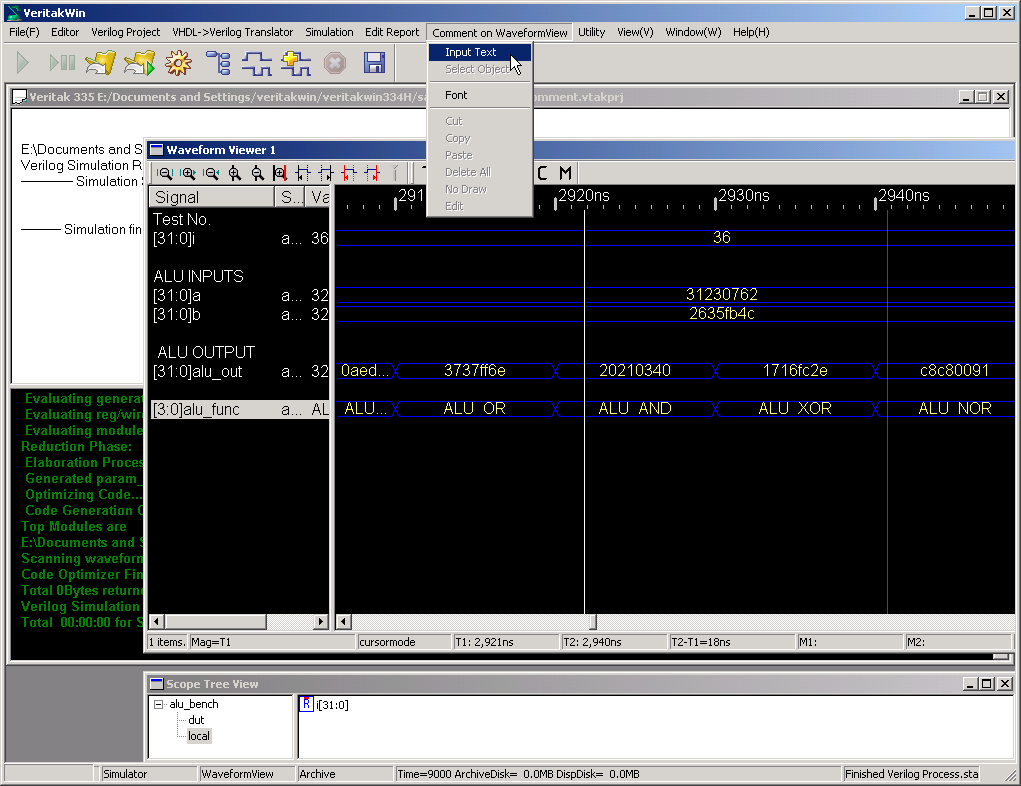

To enther a comment , you need to check Input Text as follows.

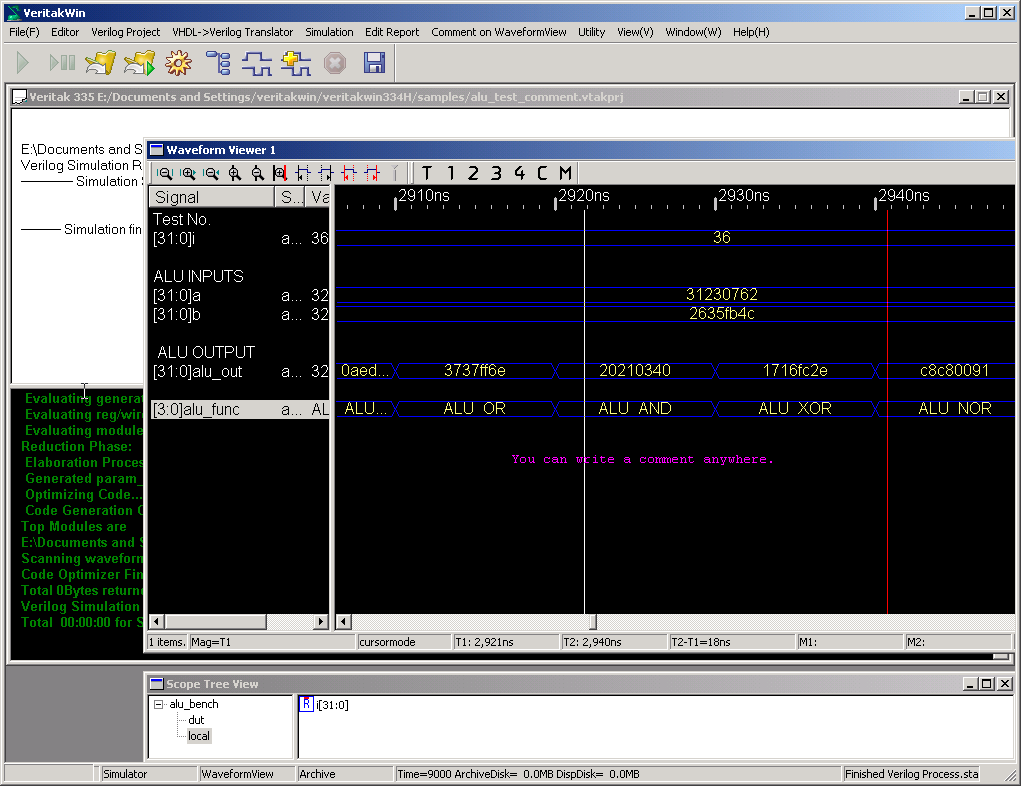

Then Enter text as you like. To finish current input, just click another point.

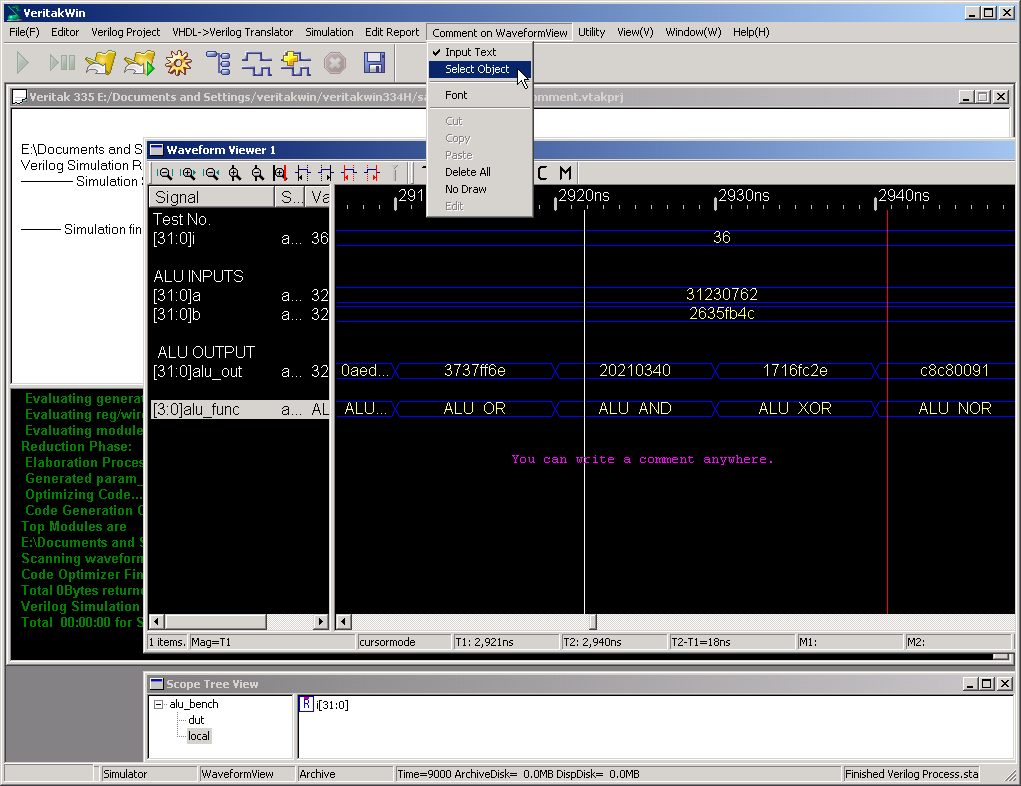

To move the block of text, you need change operating mode to Select Object as below.

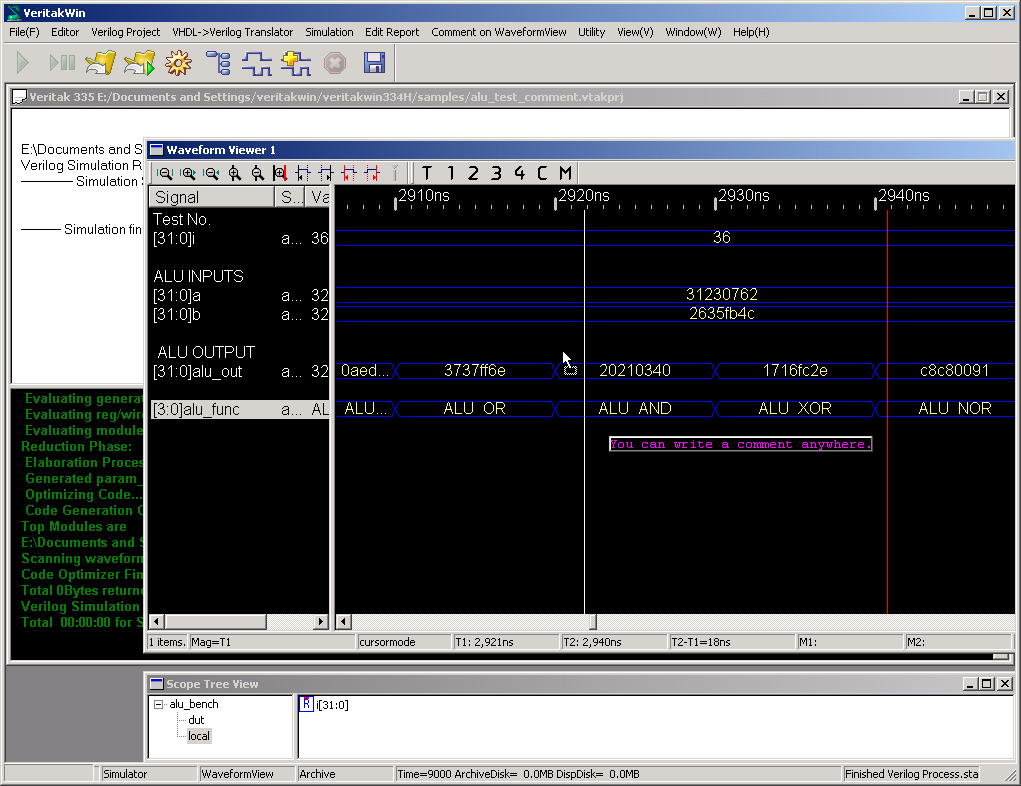

Then drag the object, and move to the position as you like.

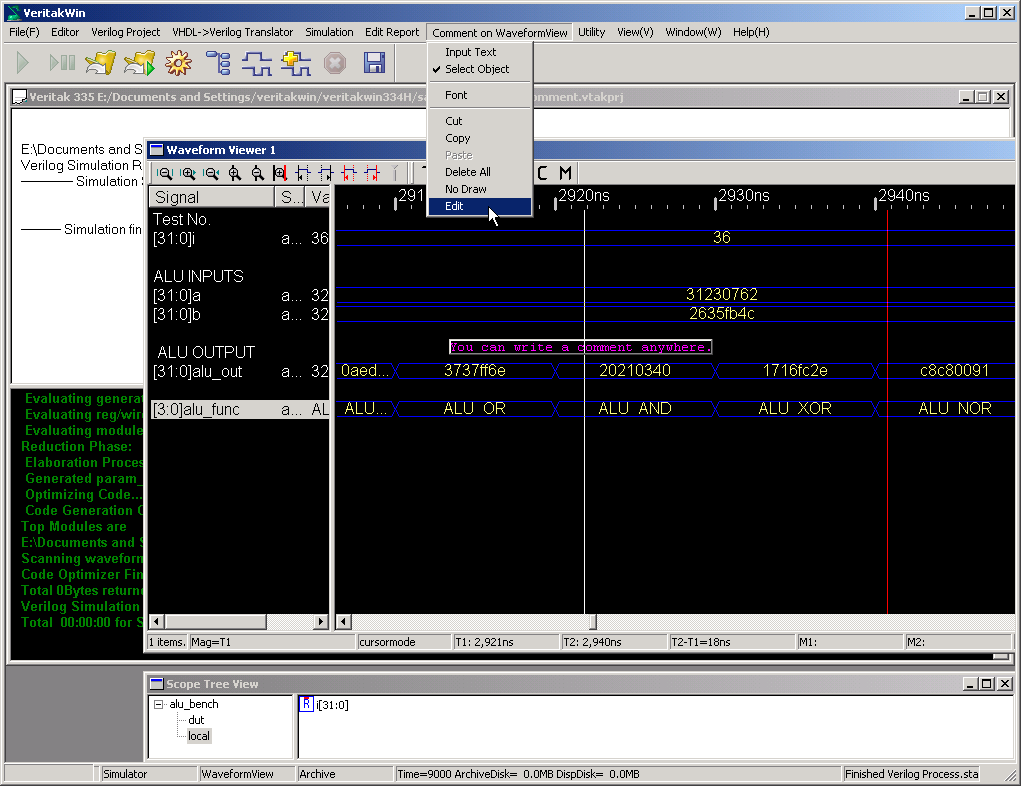

Check Edit, if you would like to edit the text.



Then dialog box will appear as follows. Edit the text and use font dialog where you  select appropriate script (Ex. Western,Japanese..).


It is noted Box has Left Top alignment.

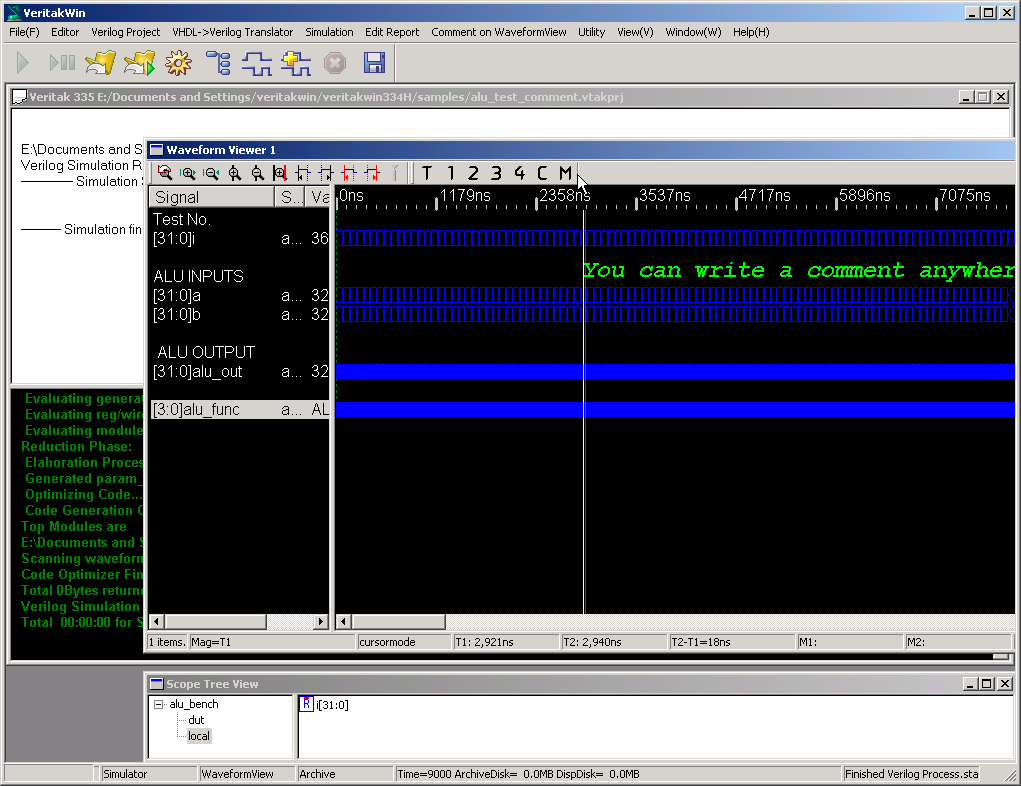

Even timescale is changed, text keeps the same time position.
If you do not want to draw comments temporally, press Marker button below.


To exit comment mode, uncheck either of Input Text/Select Object.
