Megawizard

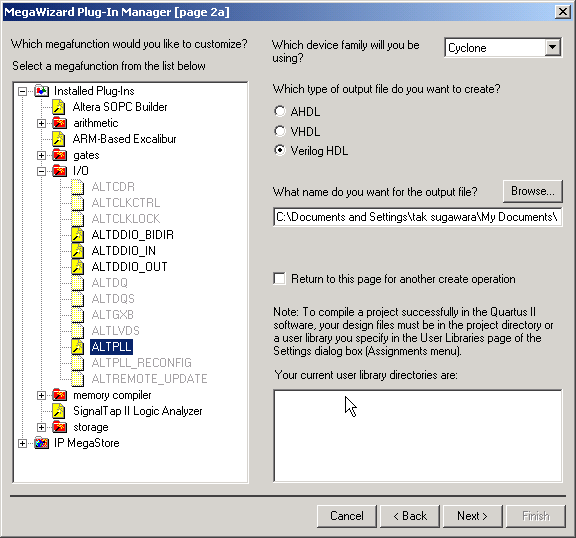

Use Megawizard to generate pll module.

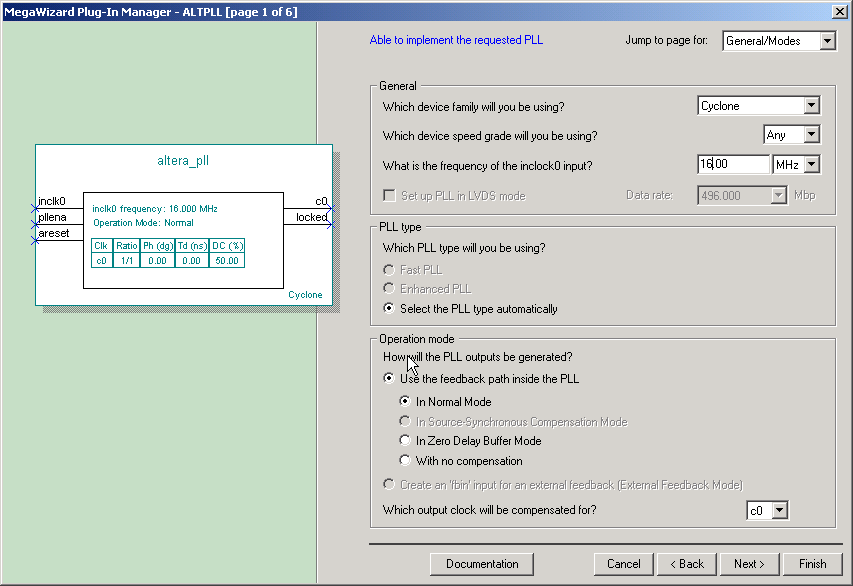

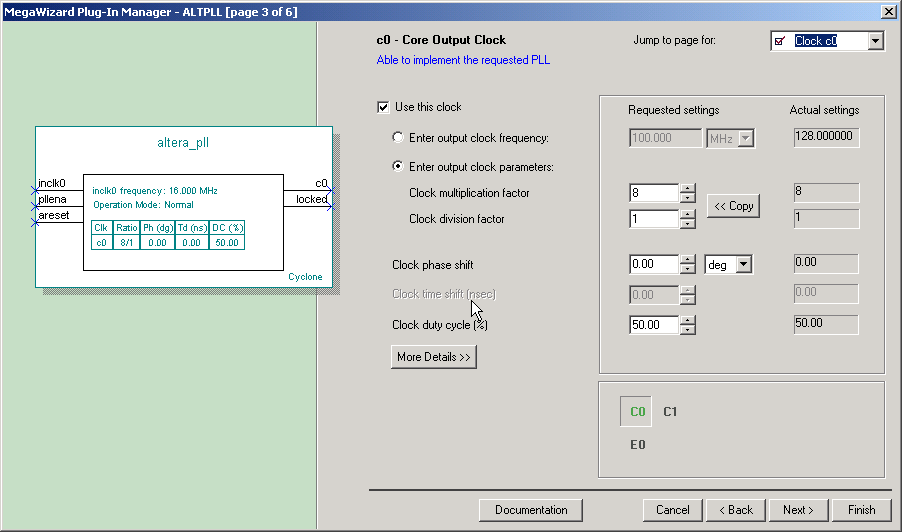

In this tutorial, we assume the pll has following spec.
RTL Simulation
8x locked signal(c0) can be observed with zero-delay after PLL locked.

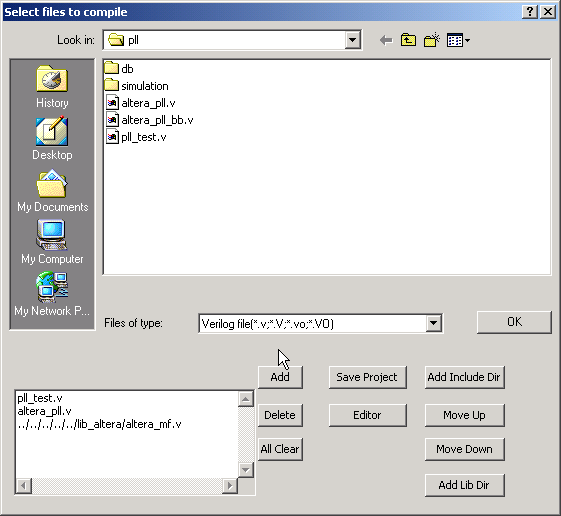

Configuration of this project is as follows.
"altera_pll.v" is generated module by Megawizard.
Synthesis
Gate Simulation
In gate simulation, PLL output(c0) is 8x locked, however 2.062ns delay by input clock. is observed.

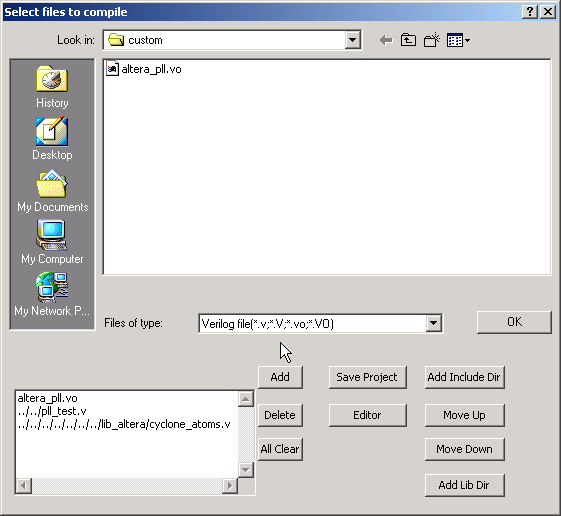

Configuration of project in gate simulation
Note on Altera/Xilinx Gate Level Simulation
Altera SDF/ Xilinx ACTEL SDF in Project Setting before Compilation must be checked
for post layout simulation..
Please observe compiler complains. carefully.
For example, if compile error shows following line,
dffeas \altpll_component|auto_generated|pll_lock_sync
You know module "dffeas" is missing..
Searching the keyword "dffeas" in libraries, you will find proper
library. In this case, you should add library "altera_primitives.v"
having dffeas. to the project..
