7 Examples of C compilation
FPGA Vendor's library is not attached since they are property of vendors. Set them under \lib folder as below to run RTL/Delay simulation in Veritak.(XilinxCorelib is not attached in free Web Edition. BaseX or higher edition will be necessary.)

7.1 RTL

In RTL simulation using UART is too slow for debugging the cpu. Therefore output is changed to console instead of UART PORT. Please note RTL simulation takes very long time in running actual 10msec .
Veritak RTL projects are

xilinx
altera
generic (no fpga library used)

Folder	C Program	Description	Batch File	Veritak Project(\bench\verilog)
\bench\c_src\count	count_tak.c	By Steve Rhords	compile.bat	altera_rtl/xilinx_rtl/generic_ram_rtl
\bench\c_src\pi	pi2.c	pi 10digits	compile.bat	altera_rtl_no_wave/xilinx_rtl_no_wave/generic_ram_no_wave
\bench\c_src\dhrystone	dhry21_tak.c	Dhrystone	compile.bat	altera_rtl_no_wave/xilinx_rtl_no_wave/generic_ram_no_wave
\bench\c_src\reed solomon	rs_tak.c	By Phil Karn	compile.bat	altera_rtl_no_wave/xilinx_rtl_no_wave/generic_ram_no_wave
\bench\c_src\calculator	uart_echo_test.c	Interactive Calculator. Interrupt debug use	compile.bat	altera_calculator_test_using_uart_echo/xilinx_calculator_test_using_uart_echo /generic_ram_calculator_test_using_uart_echo

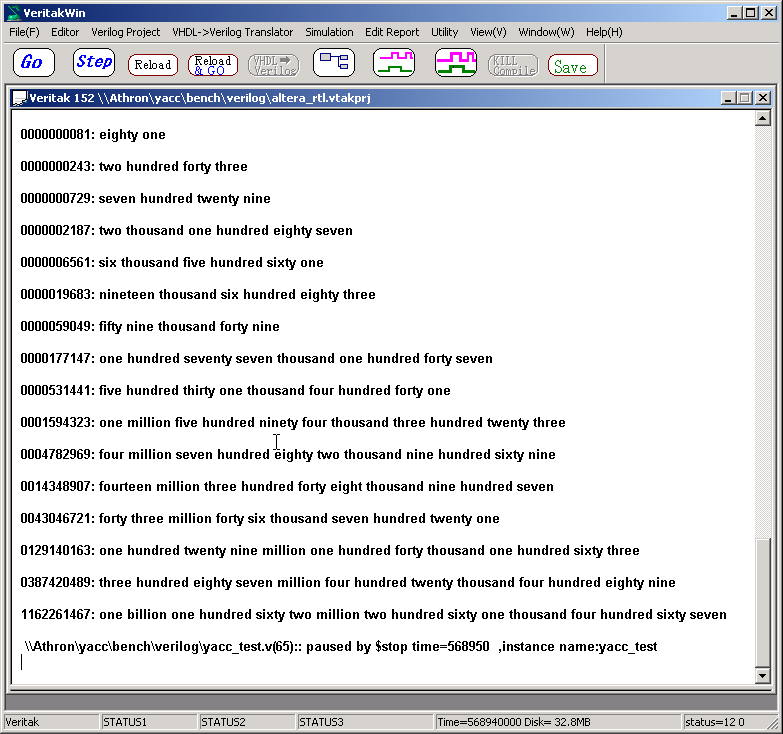

(1) count

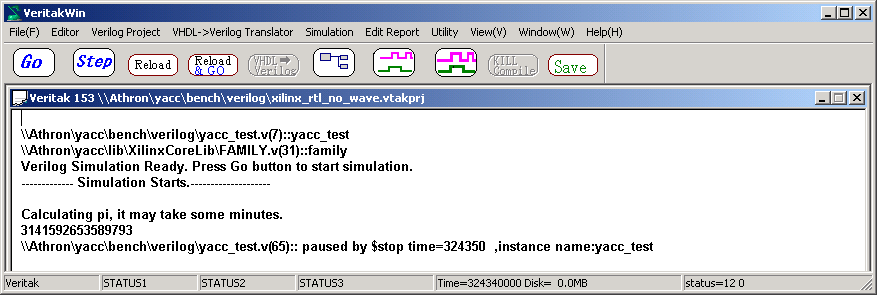

(2)Pi

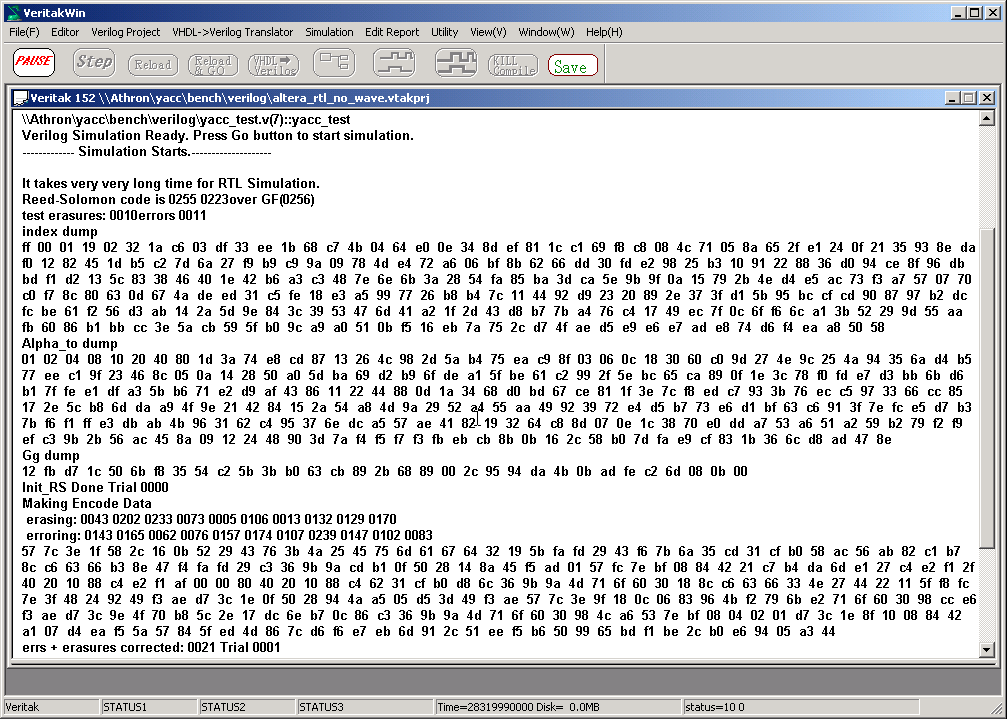

(3)Reed Solomon

(4) Calculator
This is console output only, not interactive. Using echo-back technique, UART interrupt test was done.

RTL Simulation Procedure

Compile C program using compile.bat
conver_mips.exe will generate memory initialization file for both altera/xilinx/generic,which will be sent to\rtl\xilinx , \rtl\altera and \rtl/generic.
Load Veritak Project=>Go

7.2 Gate Simulation
Using "count" above,Post-Layout Gate Simulation was performed.

Folder	Veritak Project File	Frequency
\syn\altra_stratix2\simulation\custom	Gate_altera	165MHz
\syn\altera\simulation\custom	Gate_altera	100MHz
\syn\xilinx	Gate_xilinx	25MHz

7.3 FPGA

Folder	C Program	Batch File	Description
\syn\c_src\count	count_tak.c	compile.bat	By Steve Rhords
\syn\c_src\pi	pi2.c	compile.bat	pi 800 digits calculation
\syn\c_src\reed solomon	rs_tak.c	compile.bat	By Phil Karn
\syn\yacc\bench\c_src\calculator	uart_echo_test.c	compile.bat	Interactive Calculater

Run Batch File
Synthesize top of hardware Regenerate RAM using core-generator, then Synthesize top of hardware

FPGA Confirmation

FPGA	FPGA BOARD	Device	Clock	CPU CLOCK	UART Baud Rate	Synthesized by
Altera	Future Electronics Cyclone/Nios II Development Board	EP1C12Q240C6	50MHz	50MHz	115.2KBPS	Quartus4.2
Xilinx	Xilin‚˜ Spartan3 Starter Kit	XC3S200-4FT256C	50MHz	25MHz	57.6KBPS	ISE7.1

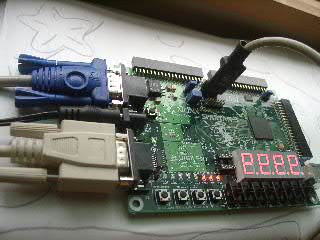

Future Electronics Cyclone/Nios II Development Board Spartan3 Starter Kit

(1) count
Same as RTL simulation except for endless loop.

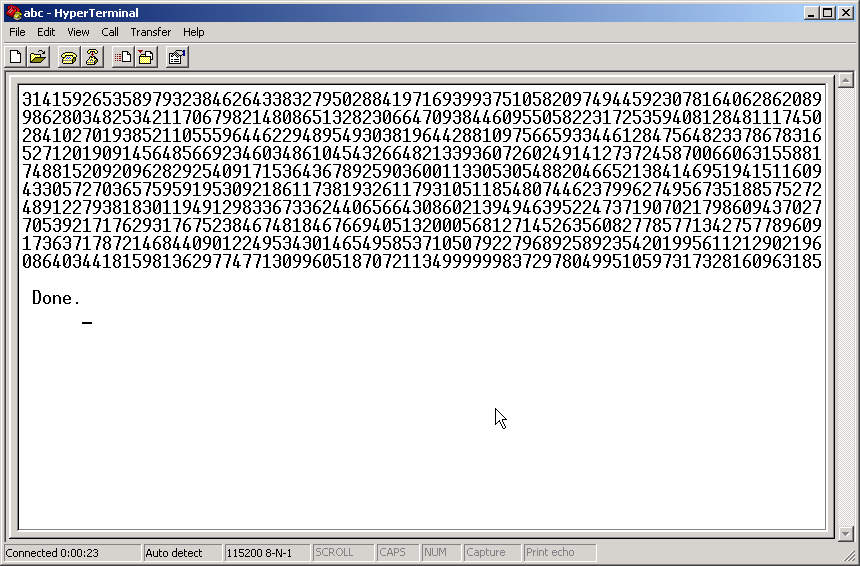

(2) pi
3.1415...follows by 800 digits.It was the same result as PC.

(3)Interactive Calculator
Use PC terminal software.You can calcuate like C program.

(4) Reed Solomon
Very Complex program (255,223) performs 120 cycles of 21bytes correction(including erasures). No miss-correction is detected.
